PPPoE

!
! Cliente1
hostname Cust1
interface Ethernet0/0
pppoe enable group global
pppoe-client dial-pool-number 1
no shut
interface Dialer1
mtu 1492
ip address negotiated
encapsulation ppp
dialer pool 1
ppp authentication chap callin
ppp chap hostname Cust1
ppp chap password 0 ciscopppoe
ip route 0.0.0.0 0.0.0.0 Dialer1

!Server
hostname ISP
username Cust1 password 0 ciscopppoe
bba-group pppoe global
virtual-template 1
interface Ethernet0/0
pppoe enable group global
no shut
interface Virtual-Template1
ip address 10.0.0.254 255.255.255.0
mtu 1492
peer default ip address pool PPPoEPOOL
ppp authentication chap callin
ip local pool PPPoEPOOL 10.0.0.1 10.0.0.10
ip forward-protocol nd

Cust1#sh ip int br | se up
Ethernet0/0                   unassigned      YES NVRAM  up                    up
Dialer1                         10.0.0.1           YES IPCP         up                    up
Virtual-Access1            unassigned      YES unset         up                    up
Virtual-Access2            unassigned      YES unset         up                    up


Cust1#sh interfaces dialer 1
Dialer1 is up, line protocol is up (spoofing)
  Hardware is Unknown
  Internet address is 10.0.0.1/32
  MTU 1492 bytes, BW 56 Kbit/sec, DLY 20000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation PPP, LCP Closed, loopback not set


Cust1#show pppoe session
     1 client session

Uniq ID  PPPoE  RemMAC          Port                    VT  VA         State
                    SID  LocMAC                                      VA-st      Type
    N/A           55  aabb.cc00.0200  Et0/0                   Di1 Vi2        UP
                            aabb.cc00.0100                              UP

IP SLA

IP SLA

Se va a hacer un tracking del router R4 al ip 5.5.5.5 ( loopback R5) aplicada a la ruta estática a la 3.3.3.0

hostname R4

track 2 ip sla 2 reachability

interface Loopback0

 ip address 4.4.4.4 255.255.255.0

!

interface FastEthernet0/0

 ip address 192.168.2.4 255.255.255.0

 duplex full

!

interface Serial1/0

 ip address 192.168.4.4 255.255.255.0

 serial restart-delay 0

ip route 3.3.3.0 255.255.255.0 192.168.4.5 track 2

ip route 3.3.3.0 255.255.255.0 192.168.2.3 10

ip route 5.5.5.0 255.255.255.0 192.168.4.5

ip sla 2

 icmp-echo 5.5.5.5

 frequency 10

ip sla schedule 2 life forever start-time now

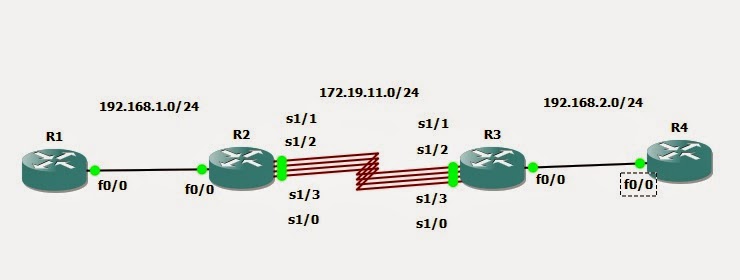

PPPoE Multilink

PPPoe  Multilink

hostname R1

interface Loopback0

 ip address 1.1.1.1 255.255.255.0

!

interface FastEthernet0/0

 no ip address

 pppoe enable group global

 pppoe-client dial-pool-number 1

!

interface Dialer1

 ip address negotiated

 ip mtu 1454

 encapsulation ppp

 dialer pool 1

 dialer-group 1

 ppp authentication chap callin

 ppp chap hostname cisco

 ppp chap password 0 cisco

!

router ospf 1

 network 1.1.1.0 0.0.0.255 area 0

 network 192.168.1.0 0.0.0.255 area 0

hostname R2

!

username cisco password 0 cisco

bba-group pppoe global

 virtual-template 1

!

bba-group pppoe test

 virtual-template 1

!

interface Loopback0

 ip address 2.2.2.2 255.255.255.0

!

interface Multilink1

 ip address 172.19.11.2 255.255.255.0

 ppp multilink

 ppp multilink group 1

!

interface FastEthernet0/0

 no ip address

 pppoe enable group test

!

interface Serial1/0

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Serial1/1

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Serial1/2

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Serial1/3

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Virtual-Template1

 mtu 1454

 ip address 192.168.1.2 255.255.255.0

 peer default ip address pool test1

 ppp authentication chap

!

router ospf 1

 log-adjacency-changes

 network 0.0.0.0 255.255.255.255 area 0

!

ip local pool test1 192.168.1.10 192.168.1.19

hostname R3

!

interface Loopback0

 ip address 3.3.3.3 255.255.255.0

!

interface Multilink1

 ip address 172.19.11.3 255.255.255.0

 ppp multilink

 ppp multilink group 1

!

interface FastEthernet0/0

 ip address 192.168.2.3 255.255.255.0

!

interface FastEthernet0/1

 no ip address

 shutdown

!

interface Serial1/0

 no ip address

 encapsulation ppp

 serial restart-delay 0

 ppp multilink

 ppp multilink group 1

!

interface Serial1/1

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Serial1/2

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Serial1/3

 no ip address

 encapsulation ppp

 ppp multilink

 ppp multilink group 1

!

interface Group-Async1

 physical-layer async

 no ip address

 encapsulation ppp

 ppp multilink

!

router ospf 1

 network 0.0.0.0 255.255.255.255 area 0

!
